A complete habitat analysis

Background. A tumour is not uniform: some parts enhance strongly, some wash out, some are necrotic. Habitat analysis splits the ROI into a few sub-regions (habitats) whose voxels behave alike across the DCE phases, using one definition shared by every patient, and then describes each patient by how much of each habitat they have and how the habitats are arranged.

Purpose. You will fit habitats on two demo patients, pick the number of habitats with the elbow rule, view the habitat maps, get a one-row-per-patient feature table (volume fractions, MSI, ITH, graph), save the model as a .habitatmodel file, and label a third patient with it.

Key terms. Each term has its own page later in the Guide; the beginner definitions are on Quickstart: Python API.

• supervoxel – a small patch of similar neighbouring voxels, clustered inside each patient first so the cohort model has fewer, less noisy rows.

• pool / fit / assign – stack all patients’ supervoxels, learn the habitat centroids once, then give every voxel the id of its nearest centroid.

• MSI – how often each pair of habitats touch; ITH score – how fragmented the habitats are (0 = one blob each).

• .habitatmodel – the saved habitat definition; loading it labels new patients without refitting.

One HabitatSpec declares the whole study. One fit_predict runs it. The stage list below is the same two-step analysis as Quickstart: Python API: raw DCE intensities, 30 supervoxels, one shared model, then volume, MSI, ITH and graph features.

Later Guide pages change one stage, or drop partition / pool. They are not a second analysis. Change DATA / MODALITIES / ROI to your preprocessed tree.

Load the cohort

Two subjects define the habitats. The third is a new patient at the end of the page. The official demo pack is cached after the first download. sphinx_gallery_thumbnail_number = 3

from pathlib import Path

import matplotlib.pyplot as plt

from habit.contracts import HabitatModel, cohort_from_directory
from habit.datasets import fetch_demo
from habit.kernels import habitat_ith_dispersion, ith_score, spatial_interaction_matrix
from habit.recipes import Study
from habit.spec import HabitatSpec, Spec, Stage
from habit.viz import (
    plot_cluster_validation_from_report,
    plot_habitat_graph_slice,
    plot_habitat_overlay,
    plot_habitat_volume_fractions,
    plot_intensity_slice,
    plot_ith_summary,
    plot_msi_matrix,
    plot_partition_triptych,
)

# Change DATA / MODALITIES / ROI to your preprocessed layout.
DATA = fetch_demo()
MODALITIES = ("pre_contrast", "LAP", "PVP", "delay_3min")
ROI = "LAP"
cohort = cohort_from_directory(DATA, modalities=MODALITIES, roi=ROI)
train, new_patient = cohort[:2], cohort[2:3]
print(cohort)

subject = train[0]
Path("out").mkdir(exist_ok=True)
fig = plot_intensity_slice(
    subject.image("LAP"),
    roi_mask=subject.mask(ROI),
    roi_contour=True,
    image_label="LAP",

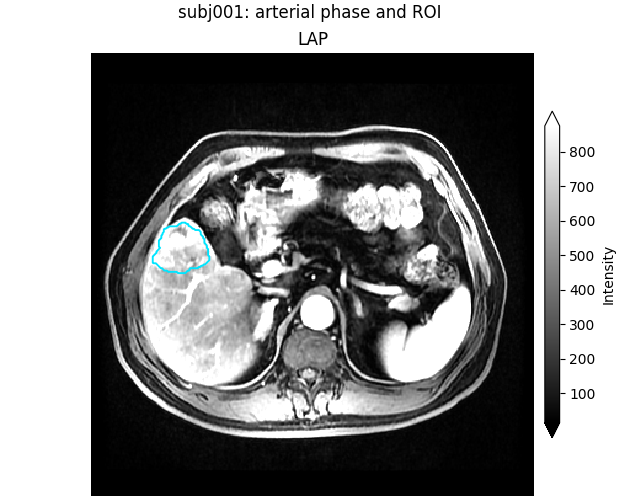

    title=f"{subject.subject_id}: arterial phase and ROI",
)
fig.savefig("out/full_pipeline_input.png", dpi=150, bbox_inches="tight")
plt.show()

HABIT demo data (cached)
DATA (preprocessed root): C:\Users\dongm\.habit_data\demo-data-v1\preprocessed

On-disk inventory of this folder:
  subjects (5): subj001, subj002, subj003, subj004, subj005
  image series: LAP, PVP, delay_3min, pre_contrast
  mask keys:    LAP, PVP, delay_3min, pre_contrast
  example image: images/subj001/delay_3min/WATER__BH_Ax_LAVA_Flex_3min_Series0012.nrrd
  example mask:  masks/subj001/delay_3min/WATER__BH_Ax_LAVA_Flex_10min_Series0017_mask.nrrd

Your own data must use the same folder tree (change IDs / series names):

  DATA/
    images/<subject_id>/<modality>/<one image file>
    masks/<subject_id>/<roi>/<one mask file>

Then load it with the same call the demos use:

  cohort = cohort_from_directory(DATA, modalities=("LAP",), roi="LAP")

Swap DATA / modalities / roi to match your tree. Mask key is often the
same as one image series (here LAP).
Cohort(5 subjects [subj001, subj002, subj003, subj004, subj005])
F:\work\habit_project\habit\viz\intensity.py:616: UserWarning: Display geometry conflict: image/anatomy direction does not match mask/label direction. Using the mask/label direction so coronal/sagittal superior-up follows the labelled anatomy. Pass direction= to override.
  resolved_direction, resolved_spacing = resolve_display_geometry(

Declare every stage

Stage’s first argument is a label you choose. Spec names a registered component and its parameters. random_seed seeds every stochastic stage (partition and fit), so a rerun paints the same map.

two_step_habitat(...) builds this list for you. Drop pool and each subject is clustered alone (one-step). Drop partition and voxels are clustered directly (direct pooling). Those two designs are Defining habitats inside each subject and Pooling voxels across the cohort.

spec = HabitatSpec(
    name="full_pipeline_two_step",
    stages=(
        # extract: one intensity column per DCE phase, voxels inside the ROI.
        Stage("extract", Spec("raw", {"modalities": list(MODALITIES), "roi": ROI})),
        # partition: 30 supervoxels per tumour. These rows, not voxels,
        # are what the shared model clusters.
        Stage("partition", Spec("kmeans", {"n_supervoxels": 30})),
        # pool: stack every training subject's supervoxels into one matrix.
        Stage("pool", Spec("pool")),
        # fit: one k-means for the cohort. Try 2..10 habitats, keep the elbow.
        # n_init=10 restarts each candidate count.
        Stage(
            "fit",
            Spec(
                "kmeans",
                {
                    "min_habitats": 2,
                    "max_habitats": 10,
                    "validation": "elbow",
                    "n_init": 10,
                },
            ),
        ),
        # assign: nearest centroid paints a habitat id onto every supervoxel,
        # then onto the voxels that belong to it.
        Stage("assign", Spec("nearest_centroid")),
        # quantify: one row per subject. The Spec name is the feature family.
        Stage("volume", Spec("volume")),
        Stage("msi", Spec("msi")),
        Stage("ith", Spec("ith_score")),
        # graph: 8-voxel cubes, habitat-labelled nodes. Extended metrics off
        # so the table stays the short default set.
        Stage("graph", Spec("graph", {"include_extended_metrics": False})),
    ),
    random_seed=0,
)
result = Study(spec).fit_predict(train)
print(result.habitat_model.summary())

Cohort.map[_ComputeUnits]:   0%|          | 0/2 [00:00<?, ?it/s]
Cohort.map[_ComputeUnits]:  50%|█████     | 1/2 [00:06<00:06,  6.07s/it]
Cohort.map[_ComputeUnits]: 100%|██████████| 2/2 [00:07<00:00,  3.88s/it]
Cohort.map[_ComputeUnits]: 100%|██████████| 2/2 [00:07<00:00,  3.88s/it]

Cohort.map[_AssignPrecomputedUnits]:   0%|          | 0/2 [00:00<?, ?it/s]
Cohort.map[_AssignPrecomputedUnits]:  50%|█████     | 1/2 [00:01<00:01,  1.66s/it]
Cohort.map[_AssignPrecomputedUnits]: 100%|██████████| 2/2 [00:02<00:00,  1.23s/it]
Cohort.map[_AssignPrecomputedUnits]: 100%|██████████| 2/2 [00:02<00:00,  1.23s/it]
HabitatModel kmeans-3432f3b65bfec11a
  habitats           : 5
  features (4)    : pre_contrast, LAP, PVP, delay_3min
  defining cohort    : n=2
  modalities         : pre_contrast, LAP, PVP, delay_3min
  cohort digest      : cc1b16a34cc7478d...
  produced by        : habitat_model_fitter.kmeans
  habit version      : 3.0.0
  random seed        : 0
  preprocessing state: inertia, selection_report, validation

How many habitats

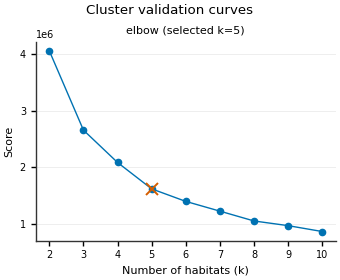

The fitter scores every candidate count. The marked point is the one kept, and the report is stored on the model.

report = result.habitat_model.preprocessing_state["selection_report"]
fig = plot_cluster_validation_from_report(report)
fig.savefig("out/full_pipeline_elbow.png", dpi=150, bbox_inches="tight")
plt.show()

Habitat maps

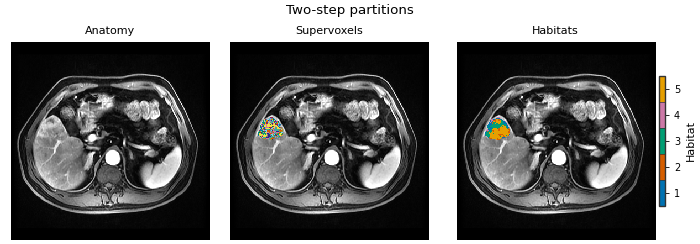

Supervoxels, then habitats, on one slice. The same colour is the same habitat in every patient because pool and fit ran once.

habitat_map = result.habitat_maps[0]
fig = plot_partition_triptych(subject.image("LAP"), result.units[0], habitat_map, axis=0)
fig.savefig("out/full_pipeline_triptych.png", dpi=150, bbox_inches="tight")
plt.show()

for one, one_map in zip(train, result.habitat_maps):
    fig = plot_habitat_overlay(
        one.image("LAP"),
        one_map,

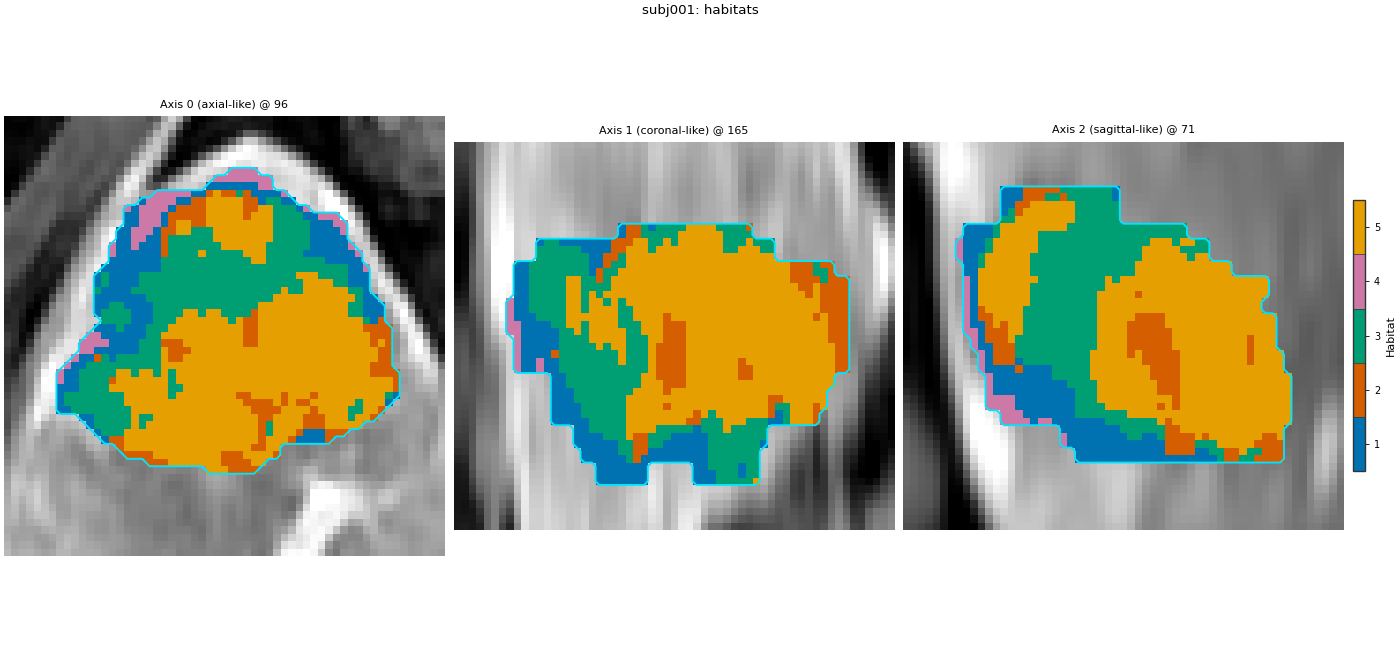

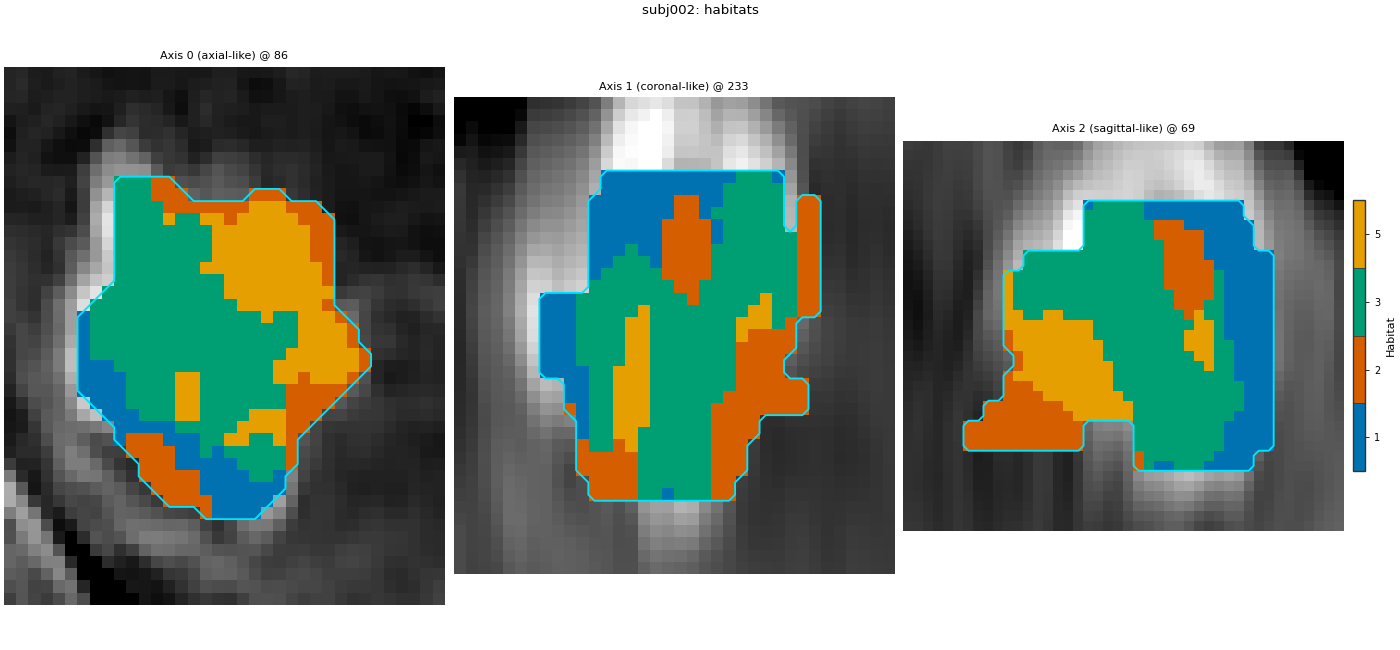

        title=f"{one.subject_id}: habitats",
        crop_to="labels",
    )
    fig.savefig(f"out/full_pipeline_habitats_{one.subject_id}.png", dpi=150, bbox_inches="tight")
    plt.show()

•
•
•

F:\work\habit_project\habit\viz\habitat_core.py:1110: UserWarning: Display geometry conflict: image/anatomy direction does not match mask/label direction. Using the mask/label direction so coronal/sagittal superior-up follows the labelled anatomy. Pass direction= to override.
  resolved_direction, resolved_spacing = resolve_display_geometry(
F:\work\habit_project\habit\viz\habitat_overlay.py:806: UserWarning: Display geometry conflict: image/anatomy direction does not match mask/label direction. Using the mask/label direction so coronal/sagittal superior-up follows the labelled anatomy. Pass direction= to override.
  resolved_direction, resolved_spacing = resolve_display_geometry(
F:\work\habit_project\habit\viz\habitat_overlay.py:806: UserWarning: Display geometry conflict: image/anatomy direction does not match mask/label direction. Using the mask/label direction so coronal/sagittal superior-up follows the labelled anatomy. Pass direction= to override.
  resolved_direction, resolved_spacing = resolve_display_geometry(

Feature table

One row per subject: volume fractions, MSI, ITH, and graph columns produced by the quantify stages above.

table = result.features.frame.set_index("subject")
print(table.shape[1], "columns")
columns = [
    c
    for c in table.columns
    if c.endswith("_volume_fraction")
] + ["ith_score", "contrast", "graph_num_nodes_total"]
print(table[columns].round(3).to_string())

663 columns
         habitat_1_volume_fraction  habitat_2_volume_fraction  habitat_3_volume_fraction  habitat_4_volume_fraction  habitat_5_volume_fraction  ith_score  contrast  graph_num_nodes_total
subject
subj001                      0.221                      0.116                      0.252                      0.047                      0.364      0.961     1.700                  516.0
subj002                      0.181                      0.242                      0.478                      0.000                      0.099      0.842     1.197                  126.0

One subject, four views of that table

Volume fractions are columns of the table. MSI, ITH and the graph slice are drawn from the same label map the table used.

labels = habitat_map.label_array
fractions = {
    hid: float(table.loc[subject.subject_id, f"habitat_{hid}_volume_fraction"])
    for hid in habitat_map.habitat_ids
}
fig = plot_habitat_volume_fractions(fractions, title=f"{subject.subject_id}: volume fractions")
fig.savefig("out/full_pipeline_volume_fractions.png", dpi=150, bbox_inches="tight")
plt.show()

n_classes = max(habitat_map.habitat_ids) + 1

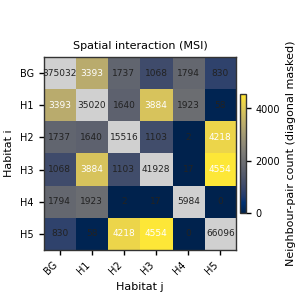

fig = plot_msi_matrix(
    spatial_interaction_matrix(labels, n_classes=n_classes),
    habitat_ids=habitat_map.habitat_ids,
)
fig.savefig("out/full_pipeline_msi.png", dpi=150, bbox_inches="tight")
plt.show()

fig = plot_ith_summary(float(ith_score(labels)), dispersion=habitat_ith_dispersion(labels))
fig.savefig("out/full_pipeline_ith.png", dpi=150, bbox_inches="tight")
plt.show()

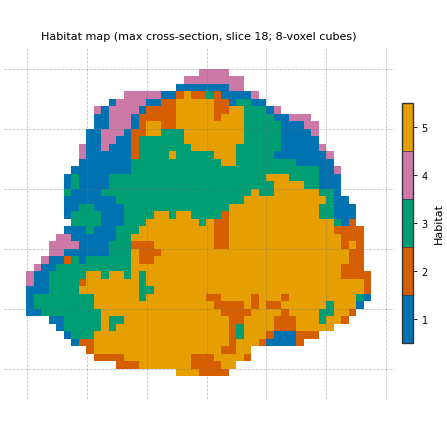

fig = plot_habitat_graph_slice(labels, block_size=8)
fig.savefig("out/full_pipeline_graph.png", dpi=150, bbox_inches="tight")
plt.show()

•
•
•
•

Save the model and label a new patient

The .habitatmodel file is the habitat definition. Loading it does not refit. The new patient gets the training centroids.

result.save("out/full_pipeline", write_maps=True)
model = HabitatModel.load("out/full_pipeline/habitat_model.habitatmodel")
prediction = Study.from_model(model).predict(new_patient)
fig = plot_habitat_overlay(
    new_patient[0].image("LAP"),
    prediction.habitat_maps[0],

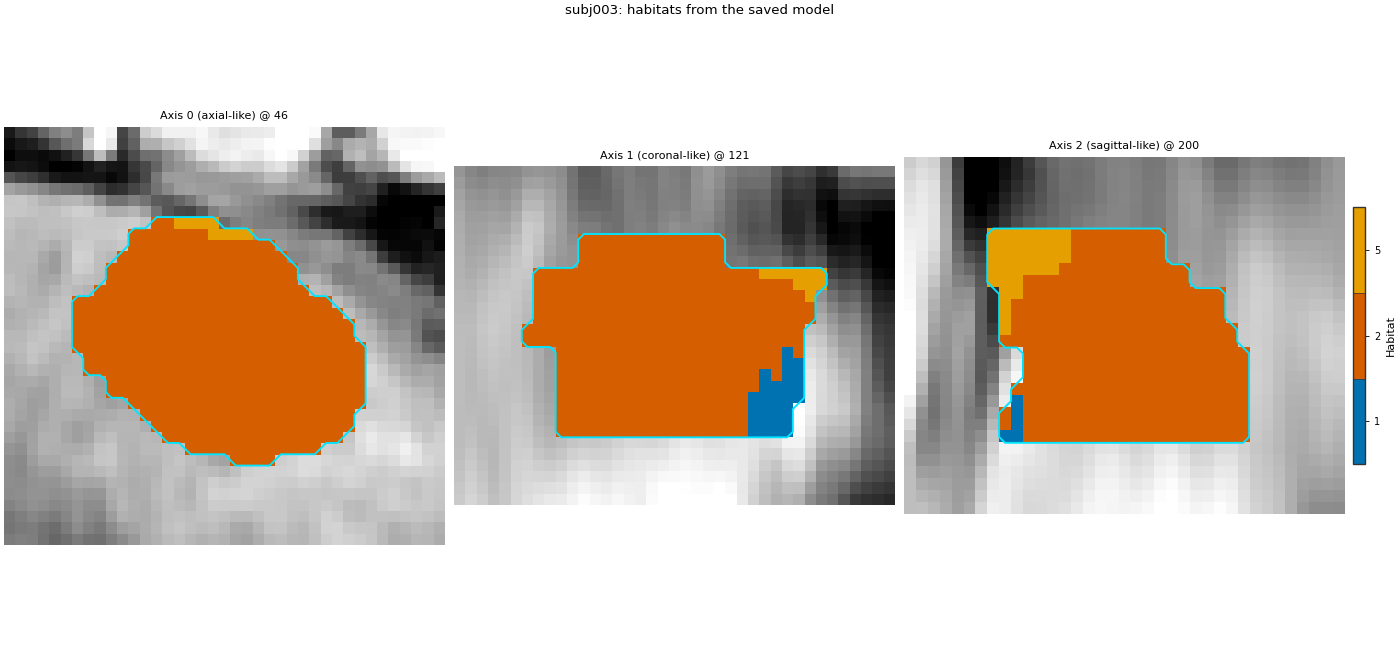

    title=f"{new_patient[0].subject_id}: habitats from the saved model",
    crop_to="labels",
)
fig.savefig("out/full_pipeline_new_patient.png", dpi=150, bbox_inches="tight")
plt.show()

Cohort.map[_LabelAndDescribe]:   0%|          | 0/1 [00:00<?, ?it/s]
Cohort.map[_LabelAndDescribe]: 100%|██████████| 1/1 [00:02<00:00,  2.25s/it]
Cohort.map[_LabelAndDescribe]: 100%|██████████| 1/1 [00:02<00:00,  2.25s/it]
F:\work\habit_project\habit\viz\habitat_overlay.py:806: UserWarning: Display geometry conflict: image/anatomy direction does not match mask/label direction. Using the mask/label direction so coronal/sagittal superior-up follows the labelled anatomy. Pass direction= to override.
  resolved_direction, resolved_spacing = resolve_display_geometry(
