Precise voxel features
Background. A voxel feature is only useful for habitats if it gives nearly the same value when the same tumour is imaged again and when its computation settings change slightly. Precise screening measures this and keeps only the features that pass.
Purpose. You get ICC forest plots for three experiments on one demo subject, the list of kept and dropped features, and a side-by-side check of habitats clustered with all features vs only the precise ones (mean Dice and disagreement under the same simulated retest).
Key terms.
retest perturbation – a simulated repeat scan: Gaussian noise, a half-voxel shift and a 0.5 degree in-plane rotation applied to the image (Prior et al. Appendix S2); the original ROI is kept.
repeatability / reproducibility – agreement between original and retest image / between two settings (kernel radius 1 vs 3, bin width 12 vs 25).

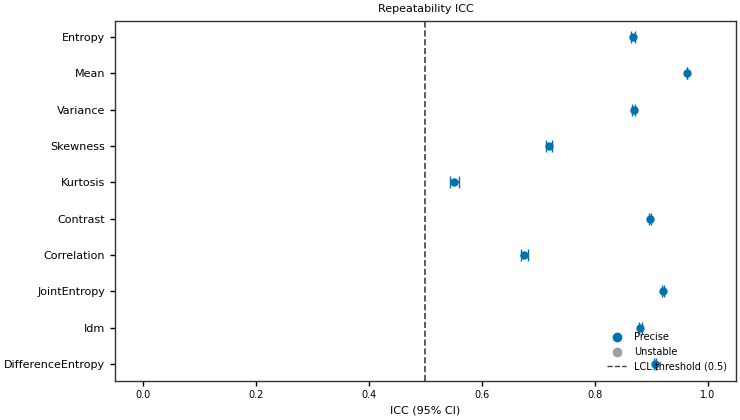

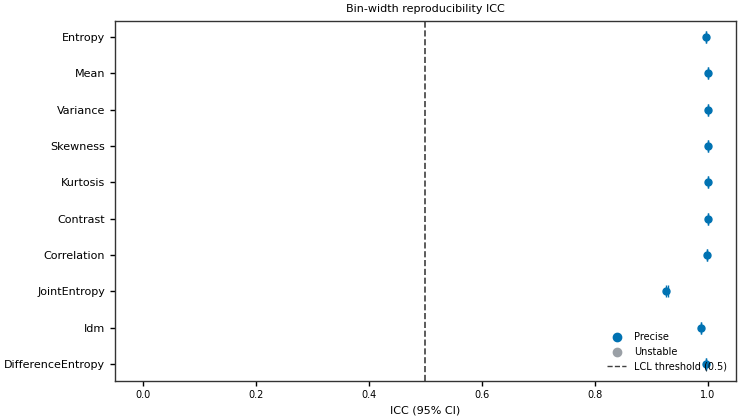

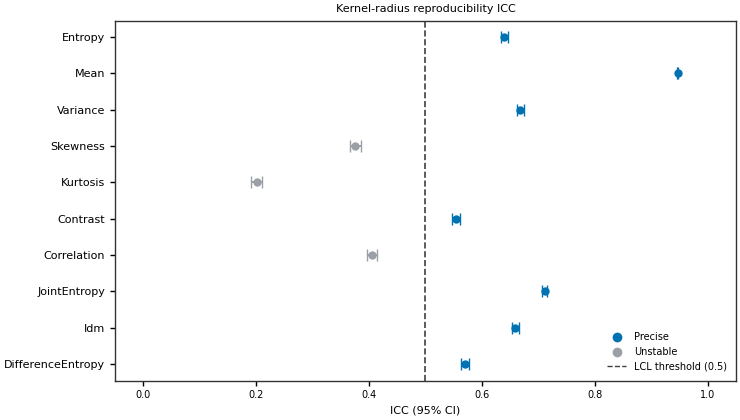

ICC (intraclass correlation coefficient) – agreement of a feature between two measurements of the same voxels; near 1 means repeatable. HABIT uses ICC(3A,1) (absolute agreement) for repeatability and ICC(3C,1) (consistency) for reproducibility, after min-max scaling each feature map.
LCL – lower limit of the ICC’s 95% confidence interval; a feature is precise here when LCL >= 0.5 in all three experiments.
whitelist – the list of precise features; a preprocessing step that drops every other column before clustering.
Dice – overlap between two label maps (0 = none, 1 = identical), scored after matching ids (see Why habitat ids must be matched).
Decide which voxel features may define habitats, then cluster only those robust features. This is the Prior et al. precision screen (Radiol Artif Intell 2024;6(2):e230118; DOI).
Evaluating stability under perturbation
The scientific claim of precise features is stability under the same
simulated retest the method was designed for (Appendix S2: Gaussian
noise, sub-voxel translation, small in-plane rotation). This page clusters
habitats twice on one subject – once with all texture features, once
with the precise whitelist – and scores original vs perturbed maps
with habitat_stability() (mean Dice) plus the
voxel-wise disagreement panel of

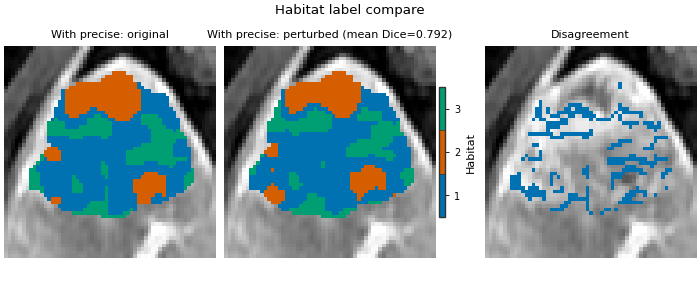

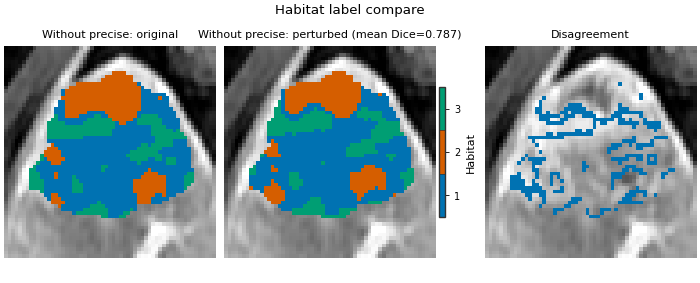

plot_habitat_label_compare(). Read the printed numbers:
precise is only “more stable” on this demo when those scores improve.

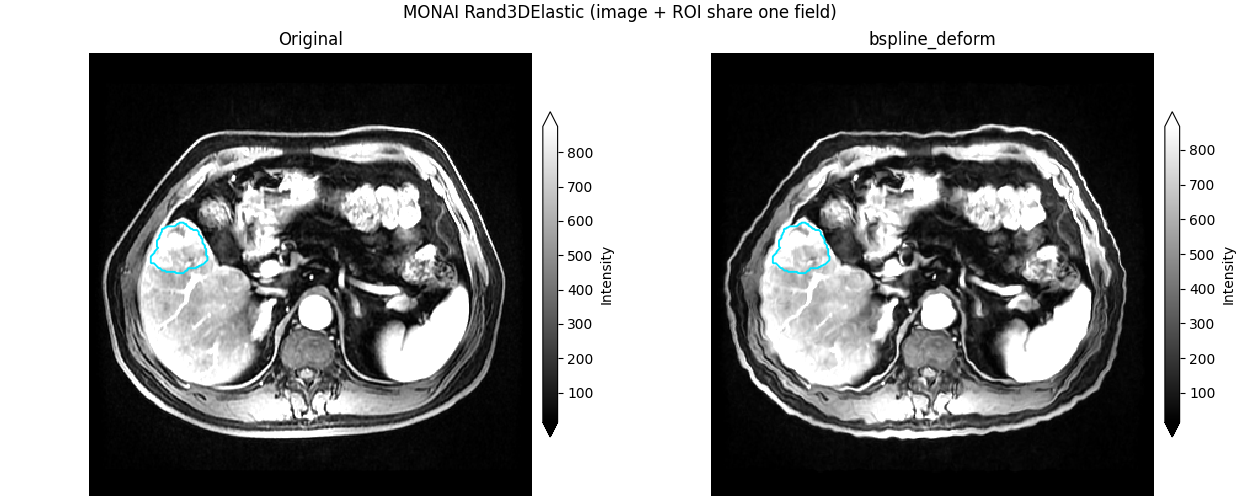

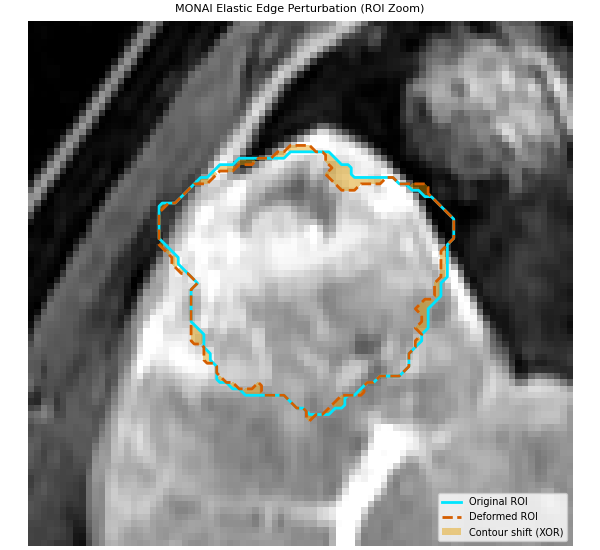

An optional MONAI bspline_deform ROI edge perturbation is shown later
to inspect contour deformations; that is separate from the Appendix S2
retest used for the habitat stability comparison.
Load one demo subject. extract_voxel_texture crops to the ROI box
internally (crop_to_roi=True).
sphinx_gallery_thumbnail_number = 5
from pathlib import Path
from typing import Dict, List, Tuple
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from matplotlib.lines import Line2D
from matplotlib.patches import Patch
from habit.contracts import Cohort, Subject, cohort_from_directory
from habit.datasets import fetch_demo
from habit.kernels.habitat_label_match import adjusted_rand_index
from habit.kernels.image_perturbation import binary_mask_dice
from habit.precision import (
ImagePerturbationRegistry,
aggregate_panels,
align_habitat_map,
habitat_stability,
identify_precise_features,
perturb_image,
precision_panel,
)
from habit.recipes import Study
from habit.spec import HabitatSpec, Spec
from habit.voxel_features import extract_voxel_texture
from habit.viz import plot_habitat_label_compare, plot_intensity_slice, plot_precision_icc
from habit.viz import use_style
from habit.viz.labels import sanitize_label
DATA = fetch_demo()
MODALITIES = ("LAP",)
ROI = "LAP"
cohort = cohort_from_directory(DATA, modalities=MODALITIES, roi=ROI)[:1]
subject = cohort[0]
image = subject.image(MODALITIES[0])
mask = subject.mask(ROI)
Path("out").mkdir(exist_ok=True)
print(f"Grid shape: {image.data.shape}")
HABIT demo data (cached)
DATA (preprocessed root): C:\Users\dongm\.habit_data\demo-data-v1\preprocessed
On-disk inventory of this folder:
subjects (5): subj001, subj002, subj003, subj004, subj005
image series: LAP, PVP, delay_3min, pre_contrast
mask keys: LAP, PVP, delay_3min, pre_contrast
example image: images/subj001/delay_3min/WATER__BH_Ax_LAVA_Flex_3min_Series0012.nrrd
example mask: masks/subj001/delay_3min/WATER__BH_Ax_LAVA_Flex_10min_Series0017_mask.nrrd
Your own data must use the same folder tree (change IDs / series names):
DATA/
images/<subject_id>/<modality>/<one image file>
masks/<subject_id>/<roi>/<one mask file>
Then load it with the same call the demos use:
cohort = cohort_from_directory(DATA, modalities=("LAP",), roi="LAP")
Swap DATA / modalities / roi to match your tree. Mask key is often the
same as one image series (here LAP).
Grid shape: (200, 360, 360)

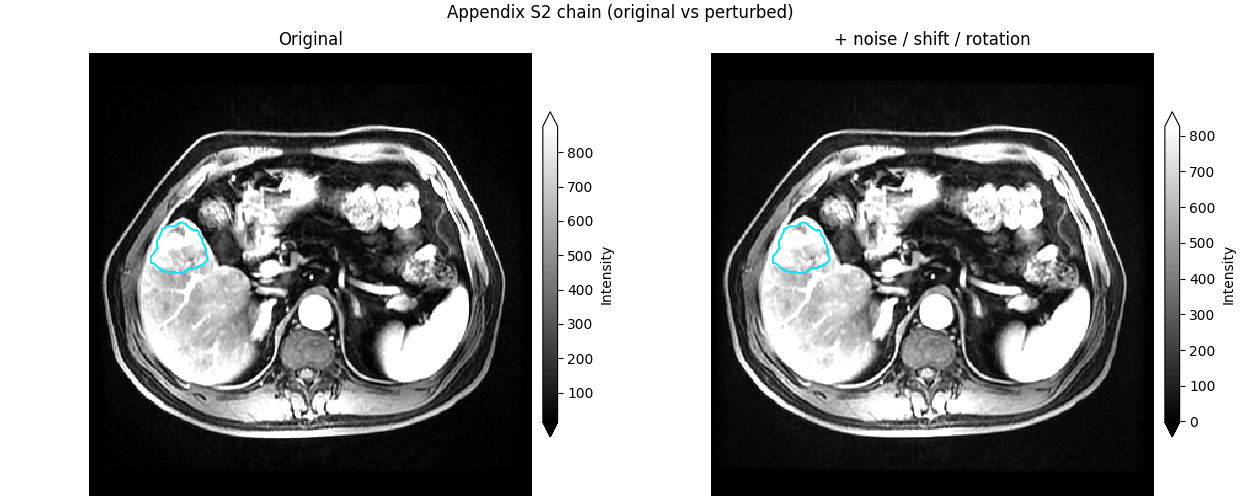

Appendix S2 retest chain on one shared RNG. Sequentially applies Gaussian noise -> translation -> rotation.
retest_rng = np.random.default_rng(7)
noisy = perturb_image(image, method="gaussian_noise", rng=retest_rng)
shifted = perturb_image(
noisy, method="translation", shift_fraction=0.5, rng=retest_rng
)
perturbed = perturb_image(
shifted, method="rotation", angle_degrees=0.5, rng=retest_rng
)
print("Appendix S2: gaussian_noise -> translation -> rotation")
fig_s2 = plot_intensity_slice(
perturbed,
before=image,
roi_mask=mask,
roi_contour=True,
title="Appendix S2 chain (original vs perturbed)",
before_label="Original",
image_label="+ noise / shift / rotation",
)
fig_s2.savefig("out/precise_features_perturb_methods.png", dpi=150, bbox_inches="tight")
plt.show()
Appendix S2: gaussian_noise -> translation -> rotation
