Voxel texture feature maps

Goal: compute and display voxel-level texture maps — densified voxel_radiomics columns (here GLCM Contrast) — as publication 2D slices.

voxel_radiomics uses PyRadiomics / TorchRadiomics for per-voxel maps; keep the enabled featureClass list small for interactive demos. Neighbourhood entropy (local_entropy) is a separate statistic, not this texture.

Walk-through (Guide): Voxel texture and GPU. For multi-GPU cohort timings, see Running the same study on each backend. Scheduling (serial, skip, resume, process pool) is 7. Parallel runs. This page keeps runtime / backend notes that the gallery does not repeat.

Who builds the texture matrices

A voxel texture class has two stages: build the matrix (GLCM, GLDM, GLRLM, GLSZM, NGTDM), then evaluate the feature formulas. First-order has no co-occurrence matrix: it gathers the kernel window and reduces it. HABIT exposes three runtimes:

Runtime

Texture matrices

Feature formulas

PyRadiomics (CPU)

radiomics.cMatrices C extension

NumPy

C matrices + TorchRadiomics

Same C extension

PyTorch (GPU)

HABIT CUDA

habit.kernels.radiomics.gpumatrices (GPU)

Same TorchRadiomics formulas (GPU)

Upstream pytorchradiomics is the middle row: every _calculateMatrix still calls cMatrices.calculate_glcm (and the GLDM / GLRLM / GLSZM / NGTDM siblings) and then self.tensor(...). HABIT vendors that code under habit.kernels.radiomics.torchradiomics and adds GPU matrix builders behind use_gpu_matrices (default "auto": on when the torch device is CUDA). Their README GLCM 636 s → 23.8 s on a \(16^3\) job is the middle row vs PyRadiomics (CPU), not HABIT CUDA.

Install in the same habit env. IBSI voxel_radiomics (all three rows above) needs PyRadiomics (Installation step 6). The two GPU rows also need PyTorch in that env: conda activate habit, then open pytorch.org → Get Started / Start Locally, pick OS / Pip / Python / Compute Platform, and run the printed command. See Installation step 5.

First-order in HABIT gathers the kernel window and computes the reductions on CUDA. That is not a C texture matrix, so the middle column does not apply.

Simulated three-way comparison

End-to-end voxel-based execute(), dtype=torch.float64, n = 5 repeats on a fixed volume (mean ± sample standard deviation):

  • Gaussian N(300, 80), shape (20, 48, 48), seed 0

  • 4096 ROI voxels, kernelRadius=3, binWidth=25, voxelBatch=512

  • first-order: Energy, Entropy, Mean, 90Percentile, Uniformity; GLCM: JointEntropy, Idm, Contrast; GLDM: DependenceEntropy, LargeDependenceEmphasis, SmallDependenceEmphasis; GLRLM: ShortRunEmphasis, RunPercentage, GrayLevelNonUniformity; GLSZM: ZonePercentage, LargeAreaEmphasis, ZoneVariance; NGTDM: Coarseness, Contrast, Busyness

  • hardware: NVIDIA GeForce RTX 3070 Laptop GPU

Column names:

  • PyRadiomics (CPU) — C-extension matrices and NumPy formulas (first-order: CPU neighbourhood stats)

  • C matrices + TorchRadiomics — C-extension matrices, GPU formulas (use_gpu_matrices=false)

  • HABIT CUDA — GPU matrices and GPU formulas (use_gpu_matrices=true; first-order gather + formulas on CUDA)

Time (s), mean ± s.d.

Class

PyRadiomics (CPU)

C matrices + TorchRadiomics

HABIT CUDA

First-order

0.760 ± 0.030

n/a

0.037 ± 0.023

GLCM

2.556 ± 0.042

0.331 ± 0.033

0.197 ± 0.087

GLDM

0.189 ± 0.007

0.182 ± 0.014

0.154 ± 0.040

GLRLM

1.567 ± 0.074

1.060 ± 0.014

0.530 ± 0.070

GLSZM

0.138 ± 0.004

0.152 ± 0.008

0.168 ± 0.006

NGTDM

0.175 ± 0.007

0.150 ± 0.003

0.131 ± 0.005

GLCM and GLRLM are the C-extension bottlenecks, so GPU formulas help and GPU matrices help again. First-order has no texture matrix; HABIT CUDA is the kernel gather plus reductions on device. GLSZM on this 4096-voxel toy is already cheap on CPU (launch overhead).

Accuracy, max abs. error of the feature maps (worst feature in the class), mean ± s.d. over the same 5 repeats:

Class

C+Torch vs PyRadiomics

HABIT CUDA vs PyRadiomics

HABIT CUDA vs C+Torch

First-order

n/a

\(1.49\times 10^{-8} \pm 0\)

n/a

GLCM

\(1.42\times 10^{-14} \pm 0\)

\(1.42\times 10^{-14} \pm 0\)

\(7.77\times 10^{-17} \pm 3.0\times 10^{-17}\)

GLDM

\(1.78\times 10^{-15} \pm 0\)

\(1.78\times 10^{-15} \pm 0\)

0

GLRLM

\(3.55\times 10^{-15} \pm 0\)

\(3.55\times 10^{-15} \pm 0\)

0

GLSZM

\(8.88\times 10^{-16} \pm 0\)

\(8.88\times 10^{-16} \pm 0\)

0

NGTDM

\(5.55\times 10^{-16} \pm 0\)

\(5.55\times 10^{-16} \pm 0\)

\(1.67\times 10^{-16} \pm 0\)

Texture C+Torch / HABIT CUDA vs PyRadiomics is NumPy vs torch formula order, not a matrix mismatch. HABIT CUDA vs C+Torch sits at machine epsilon because integer count matrices are bit-identical (tests/kernels/test_*_gpu_parity.py, 81 cases). First-order is looser (\(10^{-8}\)) because percentiles use different quantile algorithms. Force the matrix backend with use_gpu_matrices: true / false on the voxel_radiomics Spec.

Clinical large-tumor three-way benchmark

On small synthetic toys (e.g. 4,096 voxels above), kernel launch overhead and CUDA driver latency dilute the full power of GPU acceleration. In realistic clinical imaging, however, tumors often comprise tens of thousands of voxels. Under these large workloads, the performance bottleneck shifts completely:

  1. Pure PyRadiomics (CPU): The single-threaded C extension (cMatrices) must iterate voxel-by-voxel across millions of potential neighbor pairs. On large volumes, calculation times skyrocket into several minutes per subject.

  2. C matrices + TorchRadiomics (GPU): Offloading feature formulas to PyTorch helps, but the texture matrix construction remains pinned to the single-threaded CPU loop. Furthermore, large matrices must undergo costly host-to-device (H2D) memory transfer.

  3. HABIT Built-in GPU: Both matrix construction (gpumatrices) and feature evaluations execute entirely within GPU VRAM with zero host-to-device intermediate copy, yielding dramatic speedups on large clinical lesions.

The benchmark below evaluates these three runtimes on clinical liver lesion cases from the HABIT demo cohort (hardware: NVIDIA GeForce RTX 3070 Laptop GPU, binWidth=25, kernelRadius=1):

Subj001 (34,694 ROI voxels)

Feature Task

Pure PyRadiomics (CPU)

C + TorchRadiomics (GPU)

HABIT Built-in GPU

Speedup (vs CPU / vs C+Torch)

GLCM Contrast

68.71 s

7.54 s

2.68 s

25.6× / 2.8×

GLCM 4 features

85.33 s

7.04 s

3.02 s

28.3× / 2.3×

GLRLM (2 features)

13.25 s

8.02 s

2.61 s

5.1× / 3.1×

First-order (4 features)

5.30 s

n/a

1.99 s

2.7× / n/a

Subj005 (80,084 ROI voxels — massive tumor benchmark)

Runtime Architecture

Matrix Construction

Feature Formula

Time (s)

Speedup

Pure PyRadiomics (CPU)

Single-threaded C (CPU)

NumPy (CPU)

414.58 s (~7 min)

1.0×

C + TorchRadiomics (GPU)

Single-threaded C (CPU)

PyTorch (GPU)

39.62 s

10.5×

HABIT Built-in GPU

Parallel CUDA (GPU)

PyTorch (GPU)

7.59 s

54.6×

On an 80k-voxel volume, HABIT collapses a 7-minute CPU bottleneck down to 7.6 seconds, and outperforms upstream TorchRadiomics by 5.2× by eliminating the CPU matrix construction.

Cloud RTX 4080 SUPER Benchmark (54,913 ROI voxels — full 90-feature extraction)

Measured on an NVIDIA GeForce RTX 4080 SUPER (32 GiB) with Intel Xeon Platinum 8352V CPU:

Runtime Architecture

Matrix Construction

Feature Formula

Time (s)

Speedup

Pure PyRadiomics (CPU)

Single-threaded C (CPU)

NumPy (CPU)

19.48 s

1.0×

C + TorchRadiomics (GPU)

Single-threaded C (CPU)

PyTorch (GPU)

1.64 s

11.9×

HABIT Built-in GPU

Parallel CUDA (GPU)

PyTorch (GPU)

0.70 s

27.7×

Numerical parity across all 54,913 voxels × 90 features (~4.94M values):

  • C + TorchRadiomics vs HABIT Built-in GPU: Max absolute difference = 0.0 (100% bit-identical matrix construction).

  • Pure CPU vs HABIT Built-in GPU: Mean absolute difference across all values = 0.00137 (Energy/TotalEnergy max difference = 0.5 on values ~2.45M, relative error ~2e-7 due to float32 vs float64 summation). All mathematical definitions remain identical.

Multi-GPU Cohort Scaling Benchmark (16 subjects — 878,608 ROI voxels, 90 features)

Scaling dense 3D texture feature extraction across multiple GPUs on an AutoDL cloud host (5× NVIDIA GeForce RTX 4080 SUPER 32 GiB each, 2× Intel Xeon Platinum 8352V 144 logical CPUs, 503 GiB RAM). Each subject contains 54,913 ROI tumor voxels (total 878,608 ROI voxels across the cohort), extracting full 90 radiomics features:

Scenario

Execution Device

Workers

Wall Time (s)

Throughput (subj/min)

Speedup vs CPU Serial

0 GPU (CPU Serial)

CUDA=-1 (CPU)

1

263.49 s

3.64

1.0×

0 GPU (CPU Parallel)

CUDA=-1 (CPU)

2

138.03 s

6.96

1.9×

0 GPU (CPU Parallel)

CUDA=-1 (CPU)

4

79.23 s

12.12

3.3×

0 GPU (CPU Parallel)

CUDA=-1 (CPU)

8

49.16 s

19.53

5.4×

1 GPU (Cold Pool)

CUDA=0 (GPU)

1

19.30 s

49.73

13.7×

1 GPU (Cold Pool)

CUDA=0 (GPU)

2

17.44 s

55.04

15.1×

1 GPU (Warm Pool)

CUDA=0 (GPU)

1

12.41 s

77.33

21.2×

5 GPUs (Cold Pool)

CUDA=0,1,2,3,4

2

11.61 s

82.68

22.7×

5 GPUs (Cold Pool)

CUDA=0,1,2,3,4

4

14.05 s

68.32

18.8×

5 GPUs (Cold Pool)

CUDA=0,1,2,3,4

5

14.78 s

64.97

17.8×

5 GPUs (Warm Pool)

CUDA=0,1,2,3,4

5

4.16 s

231.03

63.4×

Architectural Highlights:

  • Why GPU Accelerates Voxel Radiomics: In purely CPU-bound habitat workloads (such as raw features followed by sklearn k-means clustering), computation is bounded by CPU single-core operations, so multi-GPU provides zero benefit over multi-CPU. In contrast, voxel_radiomics performs dense neighborhood tensor operations; HABIT’s parallel CUDA matrix generator and TorchRadiomics offload these computations onto GPU CUDA cores, unlocking drastic speedups (63.4× vs CPU serial, 11.8× vs 8 CPU cores).

  • Per-Worker GPU Isolation: When cap_workers_to_gpu_pool=True is configured on RunPolicy, HABIT invokes pin_worker_visible_cuda_device() inside each child worker initializer. This exposes a single dedicated GPU per worker process (slot 0 sees card 0, slot 1 sees card 1, etc.), eliminating inter-process CUDA memory collisions and context switching overhead.

  • Cold Pool vs Warm Pool Overhead: In cold one-shot execution, worker processes must be spawned fresh, import PyTorch and CUDA runtime libraries (~4s), initialize GPU contexts on their first subject (~2.4s), and gracefully join on termination (~3s). When using persistent worker pools (e.g. inside fit_predict() or via with backend.reuse_workers():), workers and CUDA contexts remain resident in memory. This eliminates process startup/teardown friction and allows the 5-GPU cluster to process the entire 16-subject cohort in 4.16 seconds (over 230 subjects/minute).

  • Worker count sweet spot on small cohorts (why 2 workers beat 5 workers on cold pools): Single-subject GPU computation is exceptionally fast (~0.71 s), meaning total raw compute across all 16 subjects is only ~11.4 s. With 2 workers (8 cases/worker), raw compute takes ~5.7 s plus ~5.9 s for process spawning and CUDA primary context initialization. With 5 workers in a cold pool (3–4 cases/worker), raw compute drops to ~2.8 s, but spawning 5 independent child processes, initializing 5 CUDA contexts, and managing 5 IPC queues introduces ~11.9 s of fixed runtime overhead (plus minor load imbalance as 16 is not divisible by 5). The ~2.9 s compute reduction is outweighed by the startup overhead. For small cohorts (<50 subjects) in cold pools, 2–4 workers represent the optimal throughput sweet spot. Once the pool is warmed up or when processing large clinical cohorts (100–1000+ subjects) where compute dwarfs startup, all 5 GPUs deliver linear multi-worker scaling (4.16 s, 231 subjects/min).

Python API (sklearn-short)

The figure below is written by docs/source/examples/scripts/voxel_texture_demo.py. Reproduce it:

python docs/source/examples/scripts/voxel_texture_demo.py

Or paste the same load + plot:

from habit.contracts import cohort_from_directory
from habit.datasets import fetch_demo
from habit.viz import plot_voxel_texture_slice
from habit.voxel_features import extract_voxel_texture

# Change DATA / MODALITY / ROI to your preprocessed layout
DATA = fetch_demo()  # or "demo_data/preprocessed"
MODALITY = "LAP"
ROI = "LAP"
subject = cohort_from_directory(DATA, modalities=(MODALITY,), roi=ROI)[0]
image_vol = subject.image(MODALITY)
mask_vol = subject.mask(ROI)
field = extract_voxel_texture(
    image_vol,
    mask_vol,
    kernel_radius=1,
    bin_width=25.0,
    feature_classes={"glcm": ["Contrast"]},
)
fig = plot_voxel_texture_slice(
    field, feature=0, anatomy=image_vol, roi_mask=mask_vol,
)

feature=0 is the first column (GLCM Contrast). A column name works too. Default mode="overlay" paints opaque feature colours inside the ROI on greyscale anatomy (optional cyan contour). alpha<1 is the explicit translucent option. mode="side_by_side" adds a sibling anatomy panel when you also want the raw image.

Layouts

plot_voxel_texture_slice() is 2D-slice only (needs matplotlib):

* ``mode="overlay"`` — greyscale anatomy + opaque feature in ROI (default)
* ``mode="side_by_side"`` — anatomy + ROI contour | feature (sibling panel)
* ``mode="feature_only"`` — feature map alone

Omit axis on 3D volumes for three orthogonal panel rows. Panels use display_convention="radiological" (pass anatomy as an ImageVolume so direction is not dropped). There is no built-in 3D volume renderer for texture maps; use ITK-SNAP / 3D Slicer / napari for full volumetric browsing.

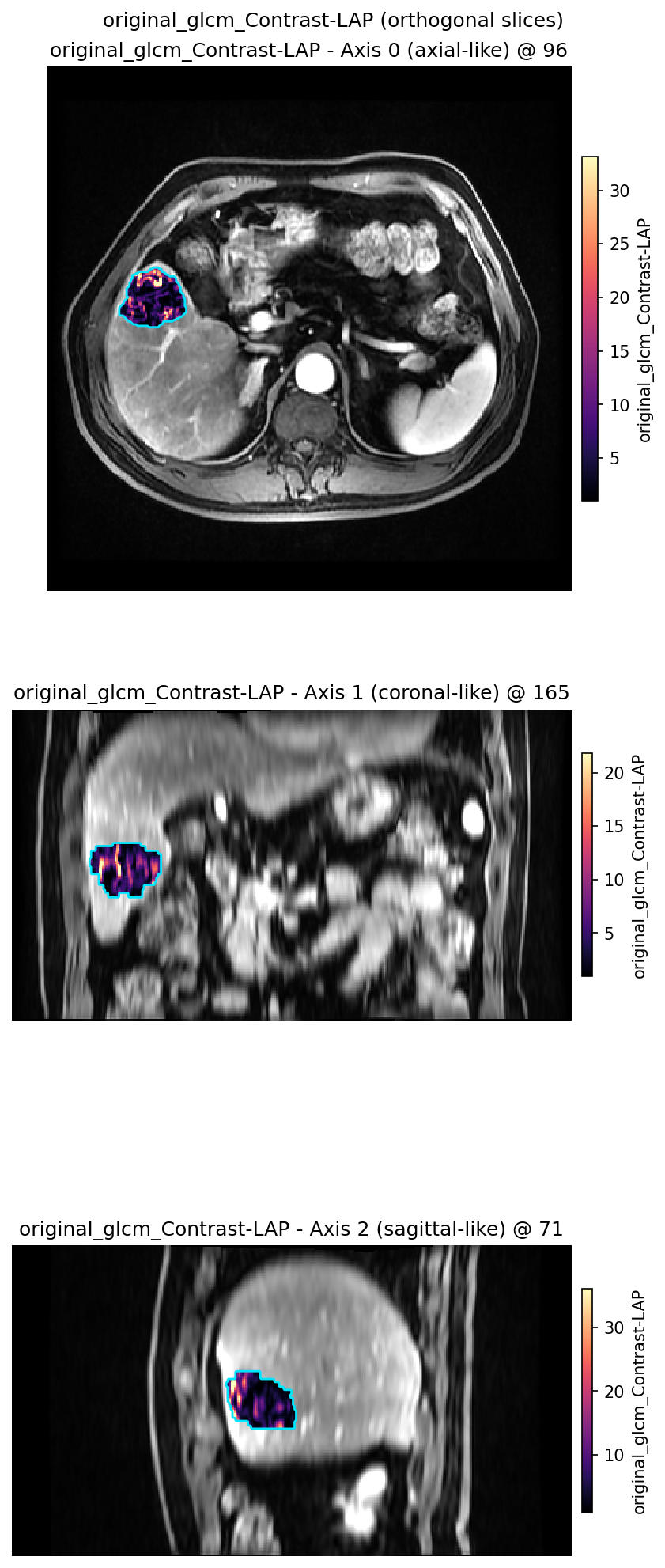

Opaque GLCM Contrast overlay on anatomy

Default overlay layout (plot_voxel_texture_slice()).
