Graph topology features

Goal: extract built-in habitat graph topology features (nodes / edges / metrics) from habitat label maps, optionally with 2D/3D figures.

Need habitat maps first (Habitat segmentation (CLI / YAML)). This page is the CLI / YAML bookmark. End-to-end Python gallery: Graph features. Reviewer-grade formulas: Graph topology features.

graph is a built-in light family under Features from habitat maps (same tier as volume / msi / ith_score). Prefer the domain / public API; habit.compat graph shims are deprecated transitional loaders.

CLI / YAML

The shipped extract YAMLs already list graph in the default light feature_types. Optionally tune a top-level graph: block (validated as GraphFeatureBlock). One physical line per shell command (Windows / conda PowerShell):

habit extract --config path/to/your_extract_with_graph.yaml

Minimal YAML fragment:

feature_types:
  - volume
  - graph

graph:
  edge_method: min_distance
  distance_threshold: 5.0
  node_method: uniform_grid
  block_size: 8
  block_min_coverage: 0.2
  connectivity: full
  erosion_radius: 0
  include_single_habitat_graph: true
  include_pairwise_habitat_graph: true
  include_extended_metrics: true
  visualize: false
  visualization_show_grid: true
  visualization_block_size: null
  visualization_grid_linestyle: "--"

Outputs:

  • habitat_graph_features.csv under out_dir

  • when graph.visualize: true, optional figures under out_dir/visualizations/graph/ (2D needs matplotlib; 3D also needs napari)

By default nodes sit at per-cell subregion centroids on a global VOI lattice (node_method: uniform_grid, block_size: 8 voxels, not millimetres). A cube is kept when its occupied fraction exceeds block_min_coverage (default 0.2); each connected habitat fragment inside that cube becomes its own node. An edge exists when the closest voxels of two nodes are within 5 voxel-index units (edge_method: min_distance, distance_threshold: 5). Face-adjacent 8-cubes connect (closest voxels are one hop apart). One empty lattice cell between cubes is closest-voxel distance about 8, which is greater than 5, so those stay disconnected. There is no morphological erosion (erosion_radius: 0). Pass node_method: component for connected-component nodes, and edge_method: adjacency if you want contact-voxel edges (default contact count >= 10). centroid_distance is the older centroid-proximity rule. 2D figures draw the same lattice as dashed lines. On each featured-habitat panel only that habitat is filled in colour; white nodes and white intra-edges are overlaid (mid-dark gray backdrop so white strokes stay visible; no light-gray other-habitat fill). Each unordered habitat pair has its own panel with those two fills in palette colours and white inter-edges between that pair only.

Parameter reference: Feature Extraction Configuration.

Python API

The figure below is written by the graph gallery (Graph features) — one-step with fixed n_habitats=4 and the library graph defaults (uniform 8-voxel cubes with per-subregion centroid nodes + min-distance edges + dashed lattice). Reproduce it:

python docs/source/examples/scripts/graph_features_demo.py

Or paste the same code the gallery shows:

from habit.contracts import cohort_from_directory
from habit.datasets import fetch_demo
from habit.kernels import HabitatGraphFeatureOptions, extract_graph_features
from habit.recipes import one_step_habitat
from habit.viz import plot_habitat_graph_network_2d, plot_habitat_graph_slice

DATA = fetch_demo()
MODALITIES = ("LAP",)
ROI = "LAP"
cohort = cohort_from_directory(DATA, modalities=MODALITIES, roi=ROI)[:1]
result = one_step_habitat(
    modalities=MODALITIES, n_habitats=4, random_seed=0, roi=ROI
).fit_predict(cohort)
labels = result.habitat_maps[0].label_array
options = HabitatGraphFeatureOptions()
# Extended metrics (efficiency / Humphries sigma / rich-club) are on
# by default. Pass include_extended_metrics=False to omit. Default
# small-world null is analytic ER; pass graph_null_sampler='config'
# or 'rewire' to replace it (not add a second column). See the
# reference page.
# Full 3D map for features; the 2D network below is display-only.
feats = extract_graph_features(labels, options=options)
fig = plot_habitat_graph_slice(
    labels, options=options, show_grid=True, block_size=8, grid_linestyle="--"
)
fig = plot_habitat_graph_network_2d(
    labels, options=options, show_grid=True, block_size=8, grid_linestyle="--"
)

Stream the same options through a one-step Report so each completed subject writes graph_slice.png and graph_network_2d.png (2D display-only; metrics stay 3D):

from dataclasses import asdict

from habit.adapters import DirectoryResultWriter
from habit.kernels import HabitatGraphFeatureOptions
from habit.report import GraphNetwork2D, GraphSlice, Report

graph = HabitatGraphFeatureOptions(edge_method="min_distance", block_size=8)
writer = DirectoryResultWriter("out/study")
# Spec("graph", asdict(graph)) on the quantify stage, then:
report = Report(
    figures=(GraphSlice(options=graph), GraphNetwork2D(options=graph)),
    figure_layout="by_subject",
    writer=writer,
)

Full walkthrough: One-step habitat analysis (Stream per subject).

Optional: other HabitatGraphFeatureOptions(...) fields, registry HabitatFeatureExtractorRegistry.create("graph", ...), and 3D render_habitat_graph_network_3d() / render_habitat_graph_surface_3d() (needs napari).

Small-world \(\sigma\) and random-graph nulls

Formulas, the three nulls, and the papers to cite: Graph topology features (Small-worldness and random-graph nulls). Short map:

  • graph_null_sampler='analytic' (default) — Humphries S versus an Erdős–Rényi graph with the same \(n\) and \(m\) (closed-form \(C_{\mathrm{rand}}\), \(L_{\mathrm{rand}}\)).

  • 'config' — configuration model (keep the degree sequence; stub matching).

  • 'rewire' — Maslov–Sneppen double-edge swaps (NetworkX sigma / random_reference).

These are alternative random-graph references, not three extra features. One small_world_sigma column; changing the sampler replaces the number. Habitat maps are spatial: none of the three nulls preserve voxel geometry.

Degree-preserving null-model API

Use a null model only for topology metrics whose interpretation must control for the degree sequence; it is not a normalization for physical contact, distance, dispersion, or node-volume features. The result records the requested and successful random graphs, so inspect is_valid before using the Z score:

import networkx as nx
import numpy as np

from habit.kernels import (
    GraphNullModelOptions,
    build_min_distance_graph,
    compare_graph_to_degree_preserving_null,
    extract_habitat_nodes,
)

# Swap in a HabitatMap.label_array from the previous block when you have one.
labels = np.zeros((16, 16, 16), dtype=np.int32)
labels[2:14, 2:14, 2:14] = 1
labels[6:10, 6:10, 6:10] = 2
nodes = extract_habitat_nodes(
    label_array=labels,
    node_method="uniform_grid",
    block_size=8,
    block_min_coverage=0.2,
)
graph = build_min_distance_graph(
    node_result=nodes,
    labels=(1,),  # Compare topology of habitat 1.
    graph_kind="single",
    distance_threshold=5.0,
)
result = compare_graph_to_degree_preserving_null(
    graph,
    nx.average_clustering,
    options=GraphNullModelOptions(
        n_random_graphs=200,
        sampler="rewire",
        swaps_per_edge=100,
        random_seed=42,
    ),
)
if result.is_valid:
    print(result.observed, result.z_score, result.empirical_two_sided_p)

The random graphs preserve each node’s degree, total nodes, and total edges, but do not preserve components, physical coordinates, distances, contacts, or habitat labels. See Graph topology features for the list of features for which this reference is appropriate and the reporting limits.

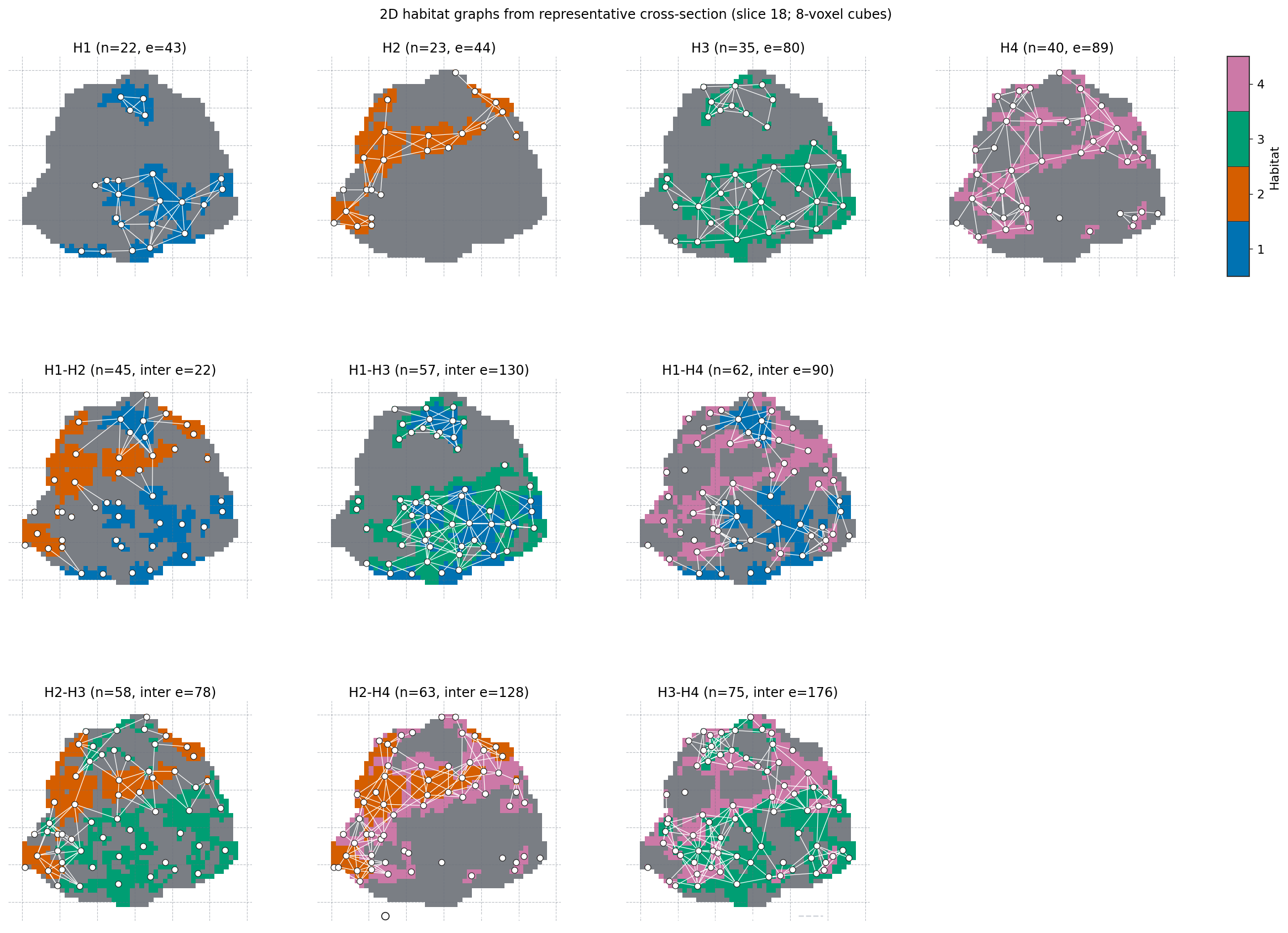

Habitat graph network on a 2D slice

Same file the gallery script writes to out/graph_habitat_network_2d.png. Features come from the full 3D map; this 2D network is display-only. The gallery also compares the same 3D maps at block_size=5.
